SDX 630 Series for standard deployments
Next-gen performance for the most demanding subscribers
Our SDX 630 Series is a portfolio of high-capacity, multigigabit XGS-PON optical network terminals (ONTs) designed for today’s most data-hungry subscribers. With symmetrical 10Gbit/s performance, integrated VoIP and ruggedized options, they serve a range of applications from smart homes and MDUs to business parks and industrial sites. Scalable and future-ready, our SDX 630 Series supports flexible deployments for entire communities.
SDX 631
Our SDX 631 XGS-PON ONT features a high-performance 10GbE interface, delivering symmetrical 10Gbit/s bandwidth for next-generation broadband services.

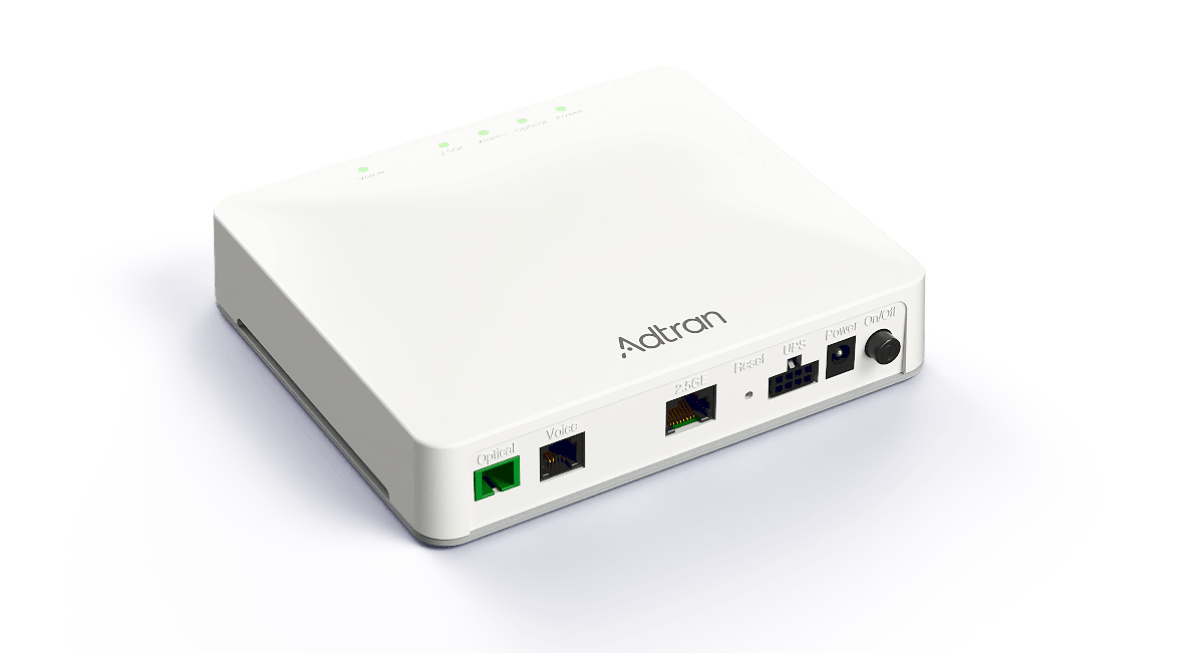

SDX 631qv
Optimized for voice services, our SDX 631qv XGS-PON ONT combines multigigabit performance with integrated VoIP capabilities. It offers a 2.5GbE interface and one POTS port for carrier-grade VoIP.
SDX 632v
Our SDX 632v XGS-PON ONT features 10GbE and 2.5GbE interfaces for maximum flexibility and a POTS port for high-quality VoIP service, perfect for demanding network environments.
SDX 632vh
Designed for harsh environments, our SDX 632vh XGS-PON outdoor ONT includes 10GbE and 2.5GbE interfaces and a POTS port for carrier-grade VoIP, making it ideal for industrial or outdoor deployments.

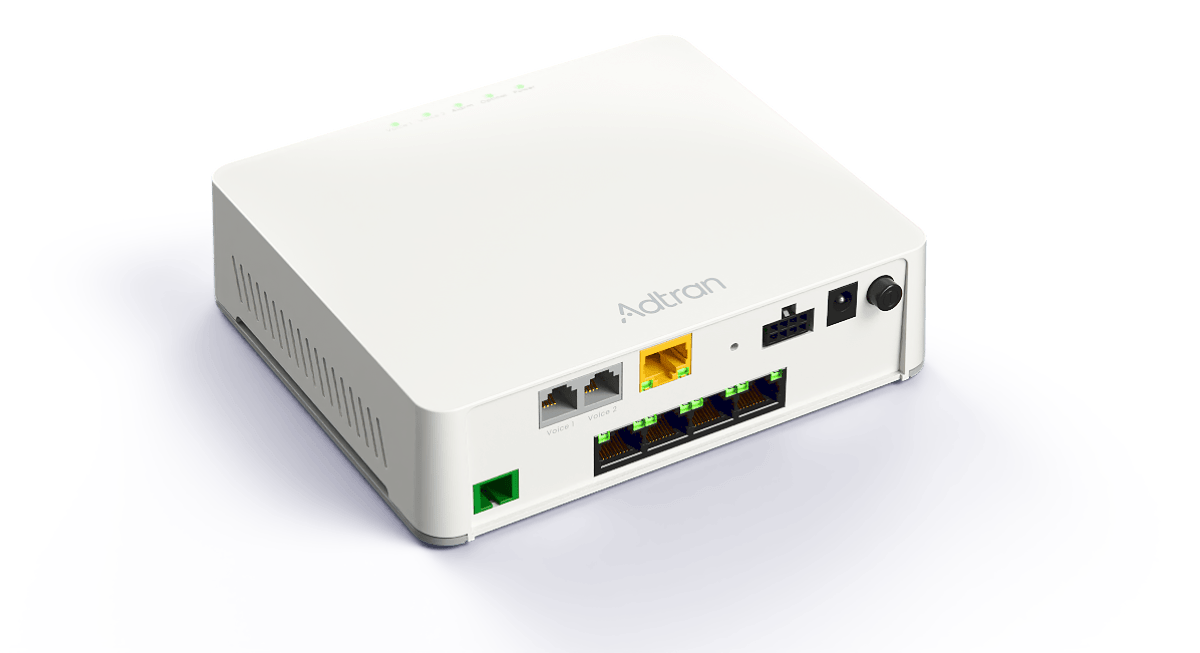

SDX 635w
The SDX 635w multiport XGS-PON ONT delivers robust business-class connectivity with a 10GbE interface, four 2.5GbE ports and two POTS ports. It supports symmetrical 10G services and dual VoIP lines, ensuring reliable, high-speed performance for enterprise environments and multi-dwelling units alike.
| Feature | SDX 631 | SDX 631q | SDX 631qv | SDX632v | SDX 635 | SDX 635w | SDX 632vh |
|---|---|---|---|---|---|---|---|
| Access technology |
XGS-PON | XGS-PON | XGS-PON | XGS-PON |
XGS-PON | XGS-PON |
XGS-PON |
| Housing | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor | Outdoor |
| FXS interfaces | 1 | 1 | 2 | 1 | |||
| 2.5GbE interfaces | 1 | 1 | 1 | 4 | 4 | 1 | |
| 10GbE interfaces |
1 | 1 | 1 | 1 | 1 | ||
| Additional features | UPS/BBU with telemetry capabilities |
||||||
| Mounting options |
SFP cage insertion |
Desk, wall, fiber tray, wall mount box, DIN rail |
NID outdoor housing |
||||
| Part number |
1287930F1 | 1287944F1 | 1287937F1 | 1287943F1 | 1287946F1 | 1287945F1 |
1287955F1 |
